Features & benefits

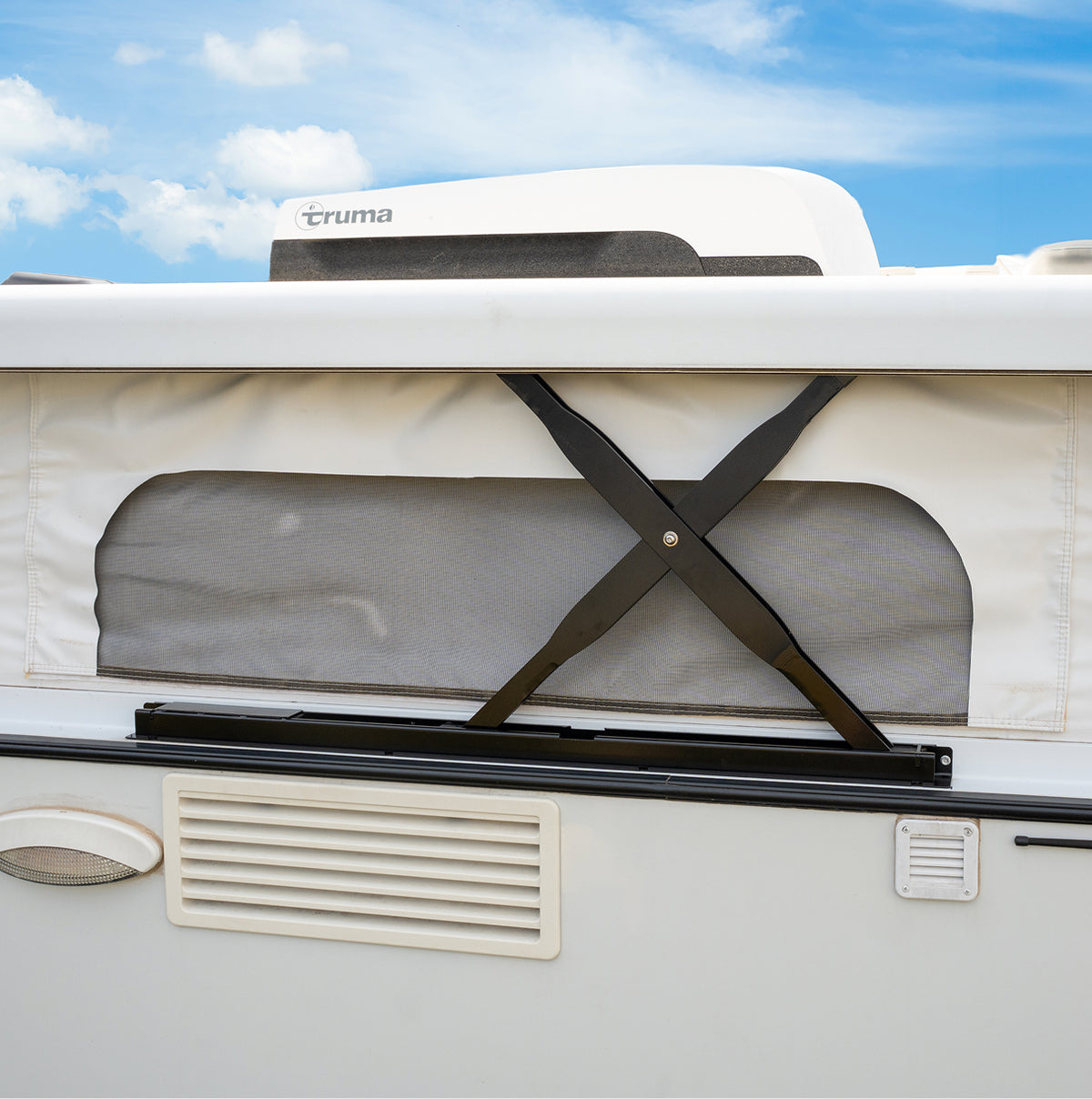

12V electric roof lift built specifically for pop-top caravans.
Actuator-free brushless motor drive, designed and patent pending in Australia.
Rated for roofs up to 300 kg.

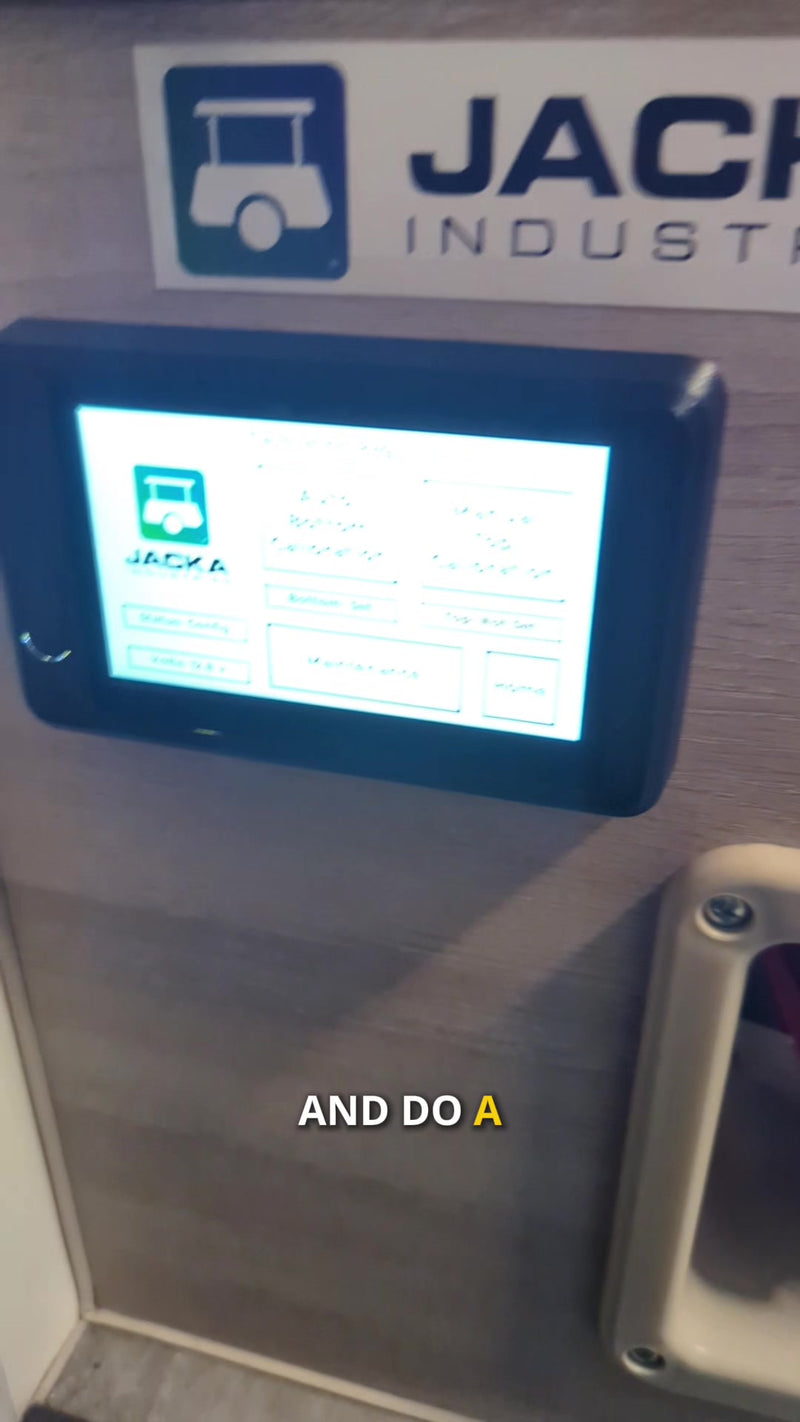

Stop the roof at any height, with full-stroke calibration.

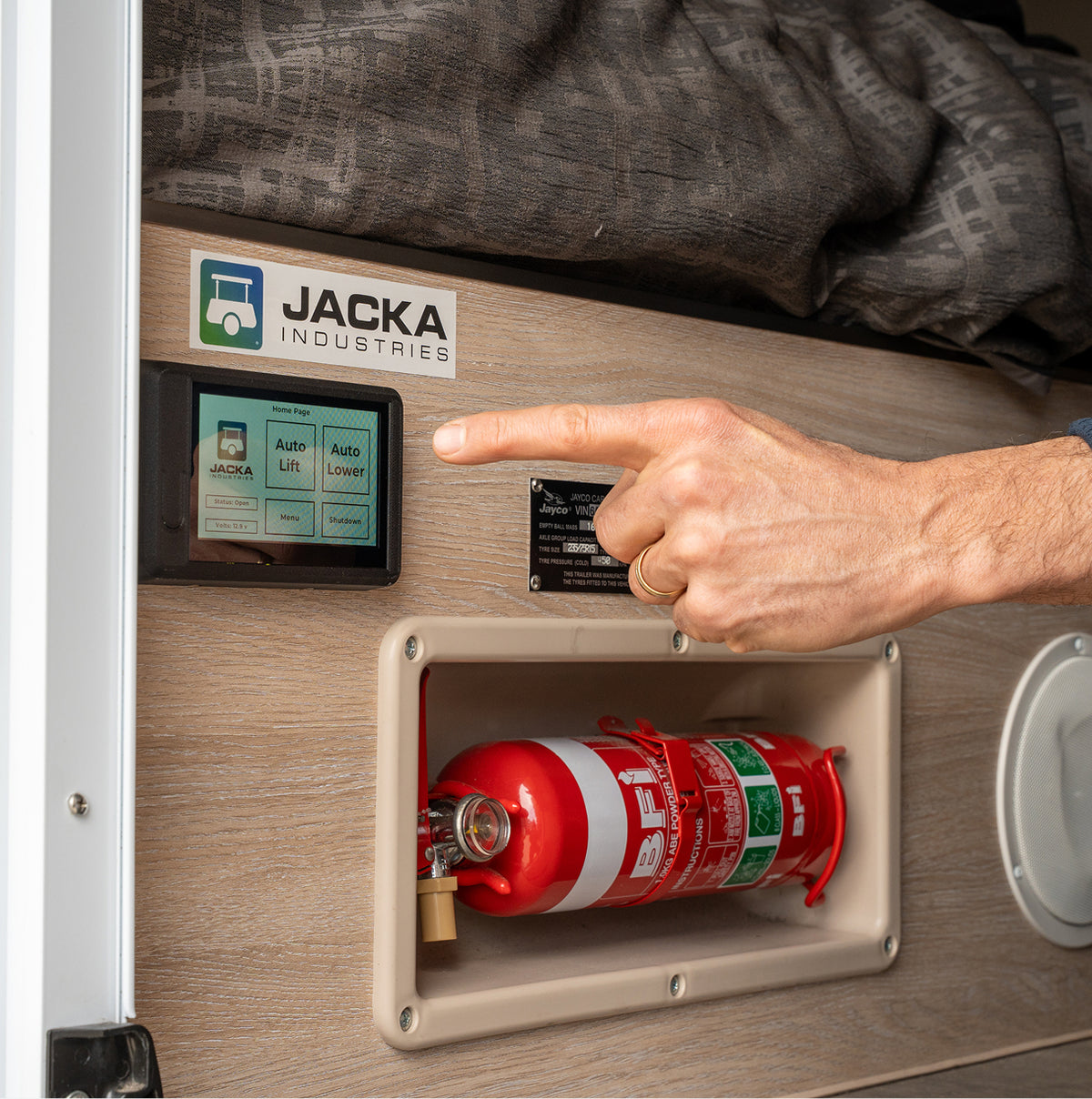

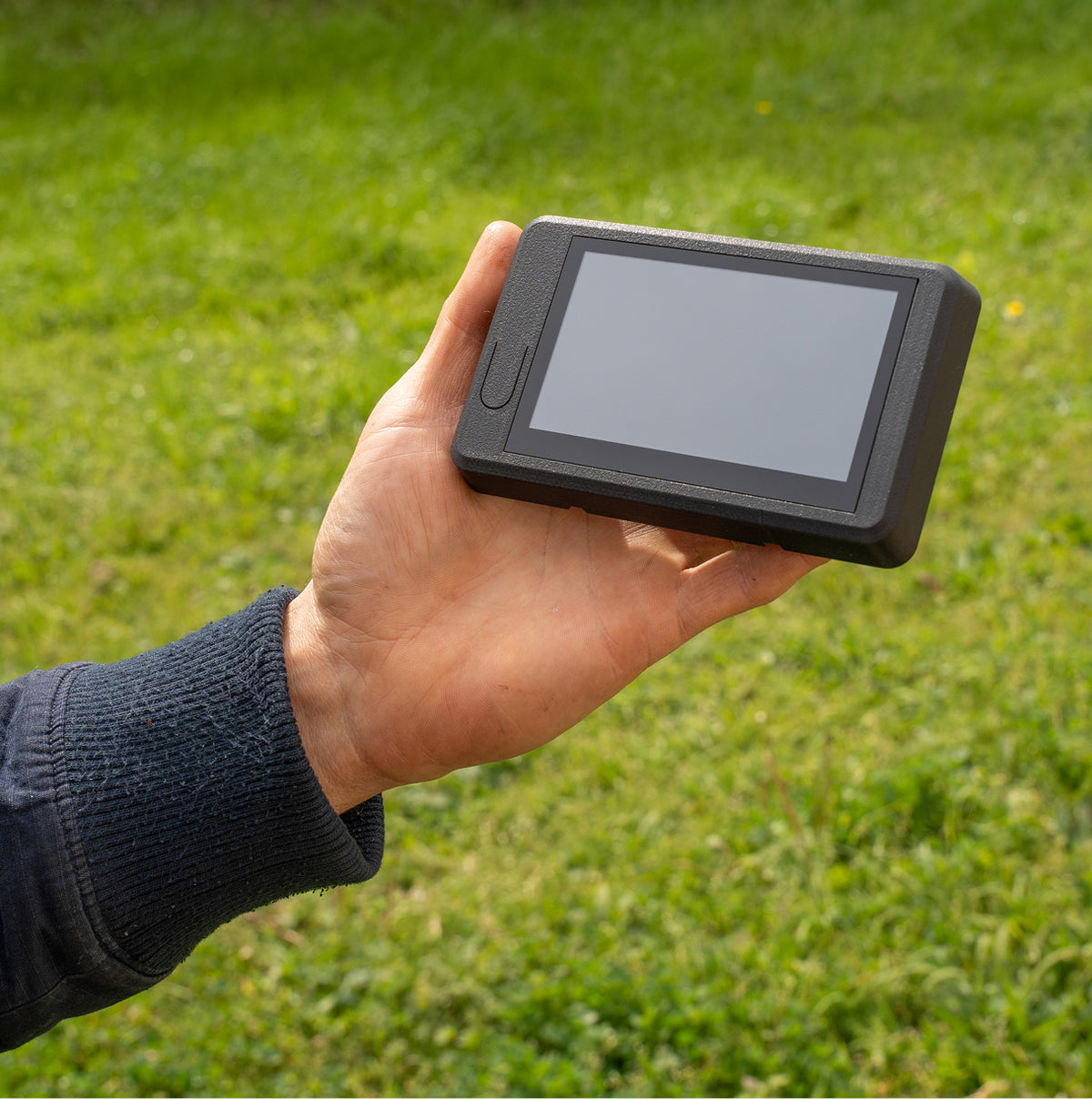

4.3-inch colour touch screen plus a separate heads-up display you can mount anywhere in the van.
Fully stainless steel with a satin black powder coat.

Safety

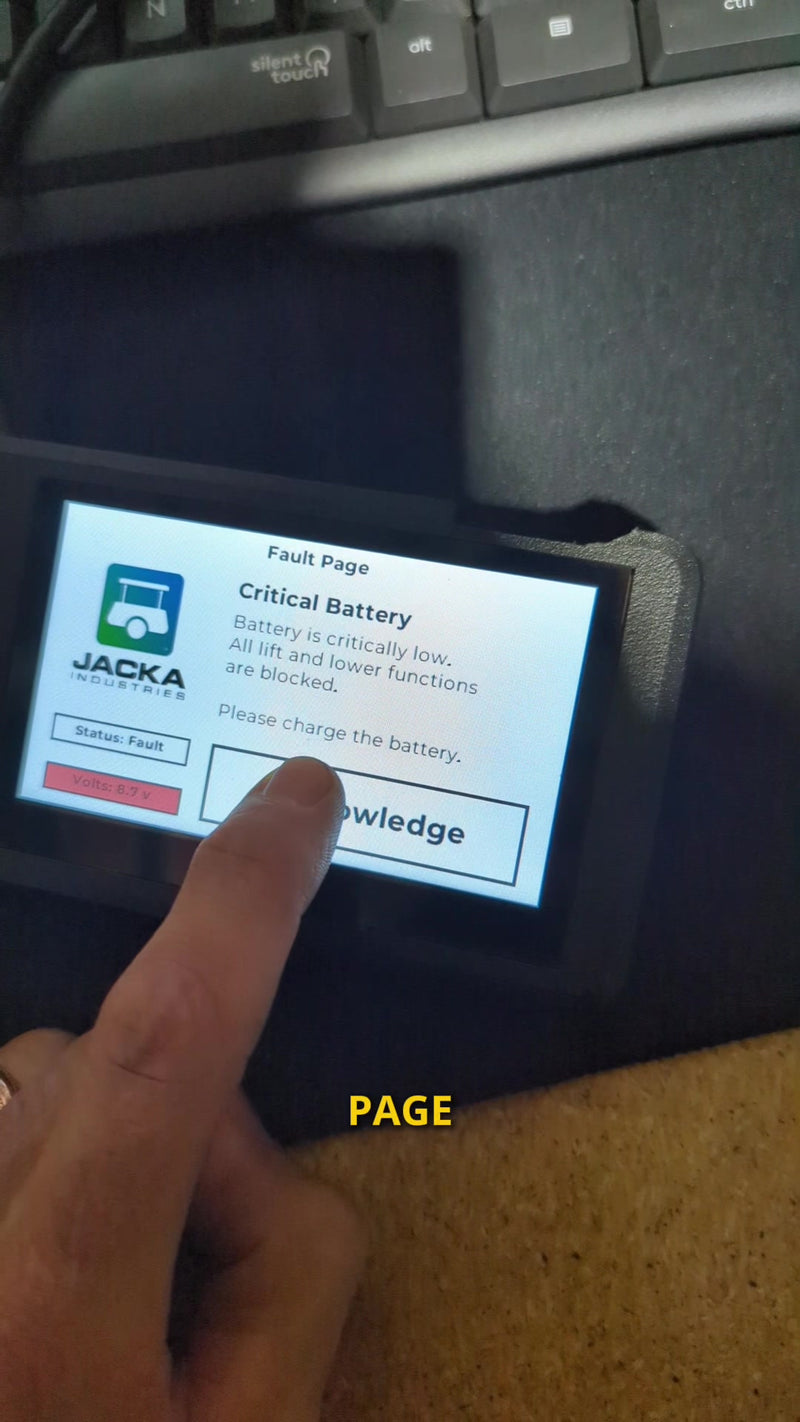

Over-current and trip protection stop the drive if the roof is obstructed.
The roof can still be raised by hand if the system trips or power is lost.
Plug-and-play modular harness with no exposed wiring.
Fitted by Jacka or an authorised service agent.

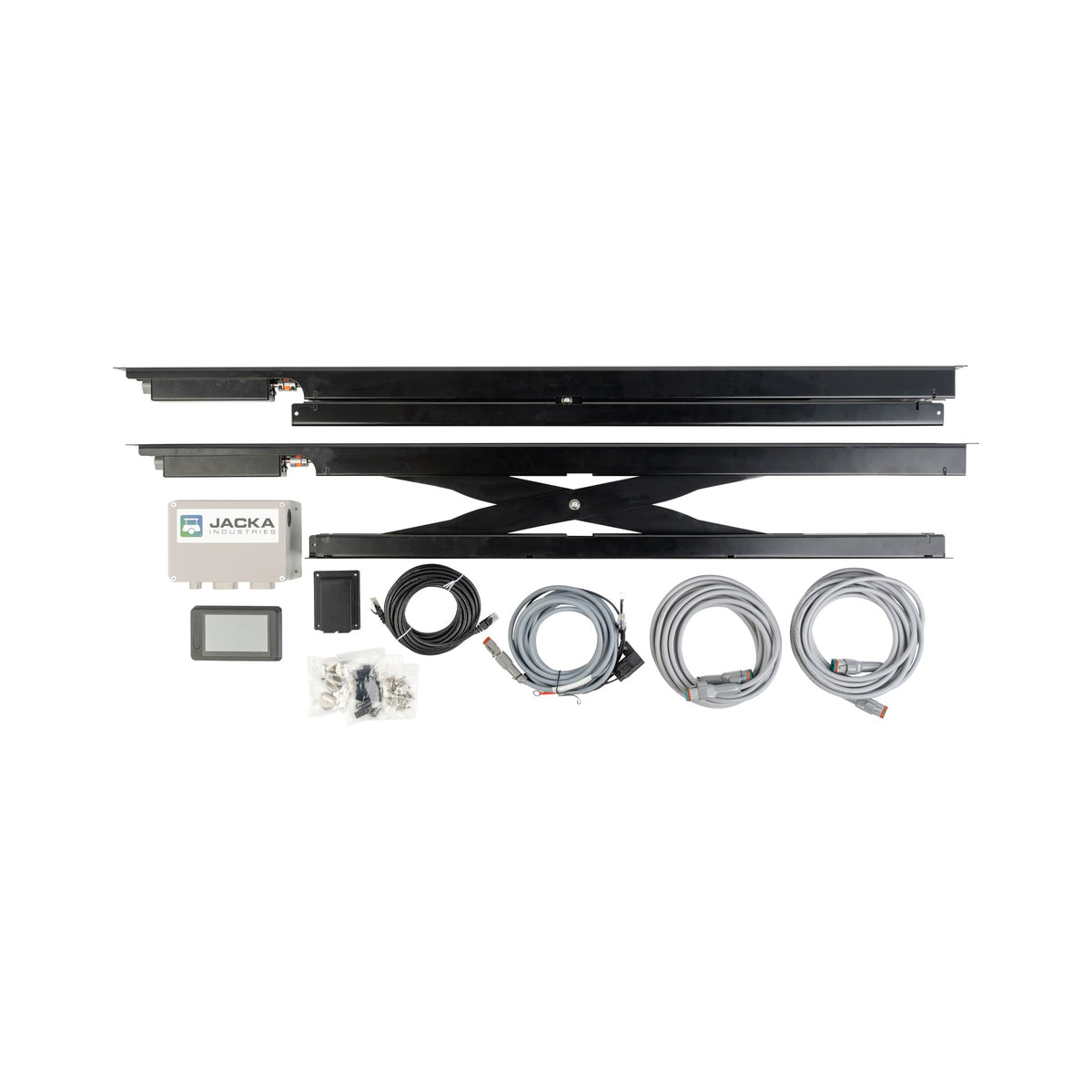

What's included

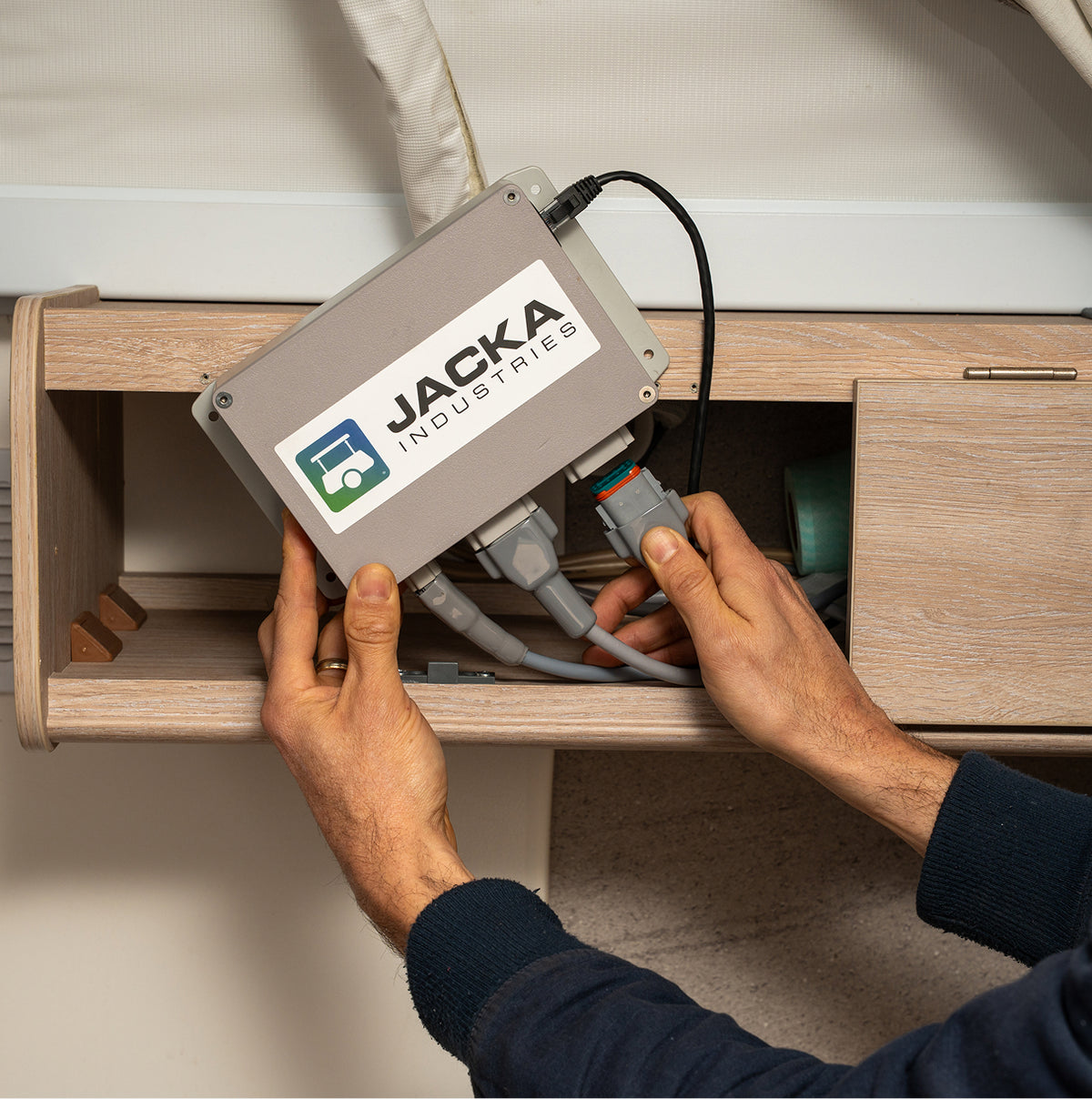

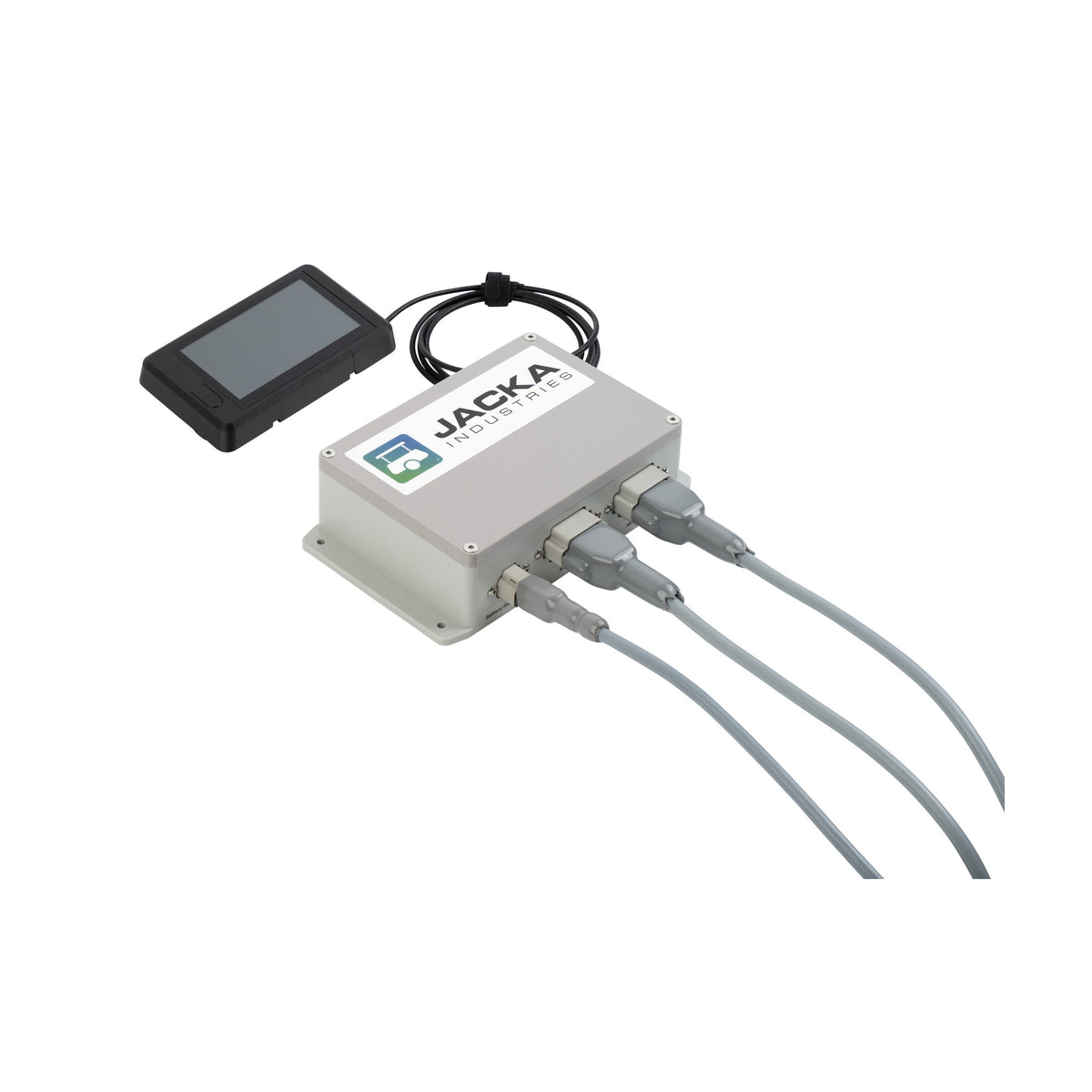

1 x Jacka-PT: Central controller
1 x Jacka-PT: Heads up touch Screen

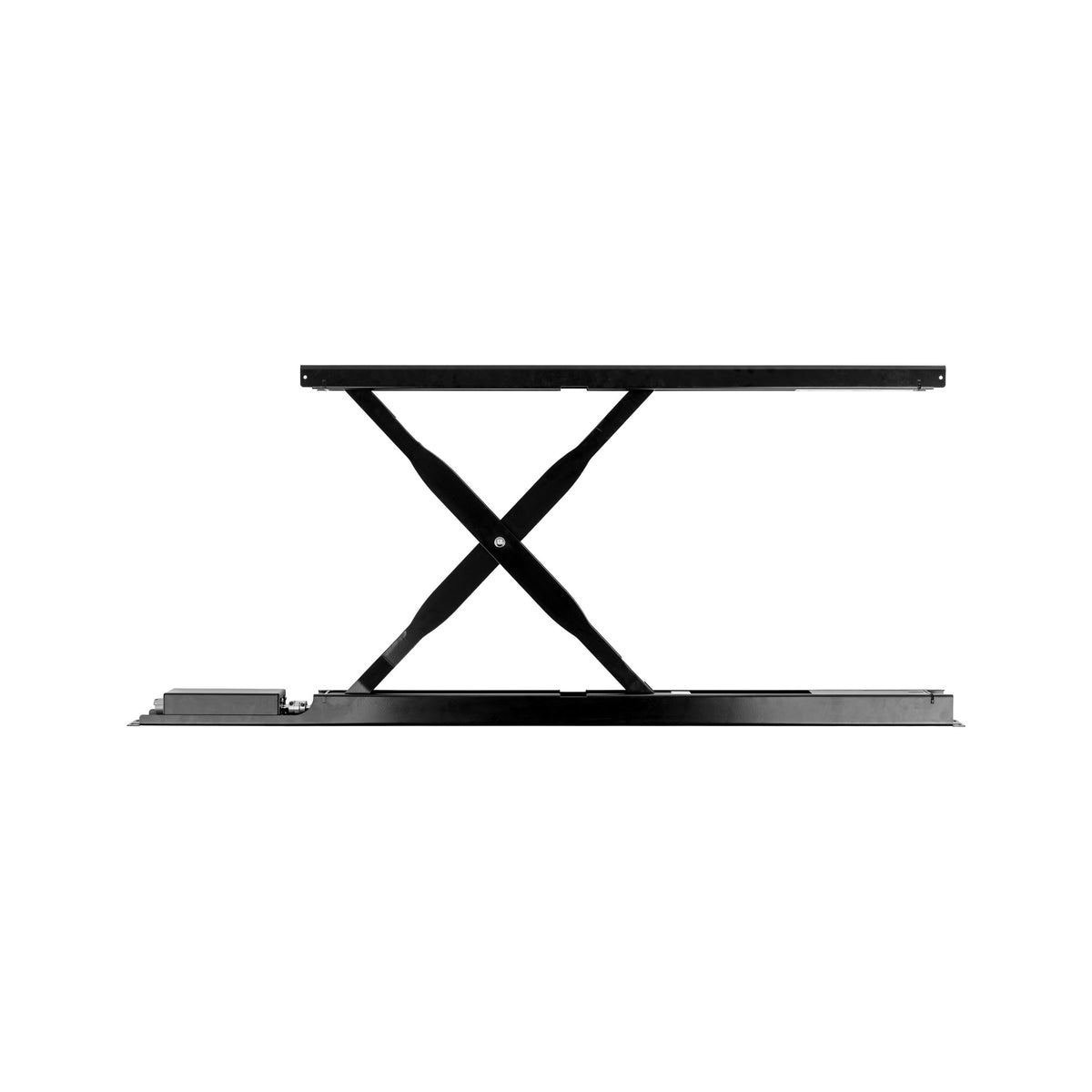

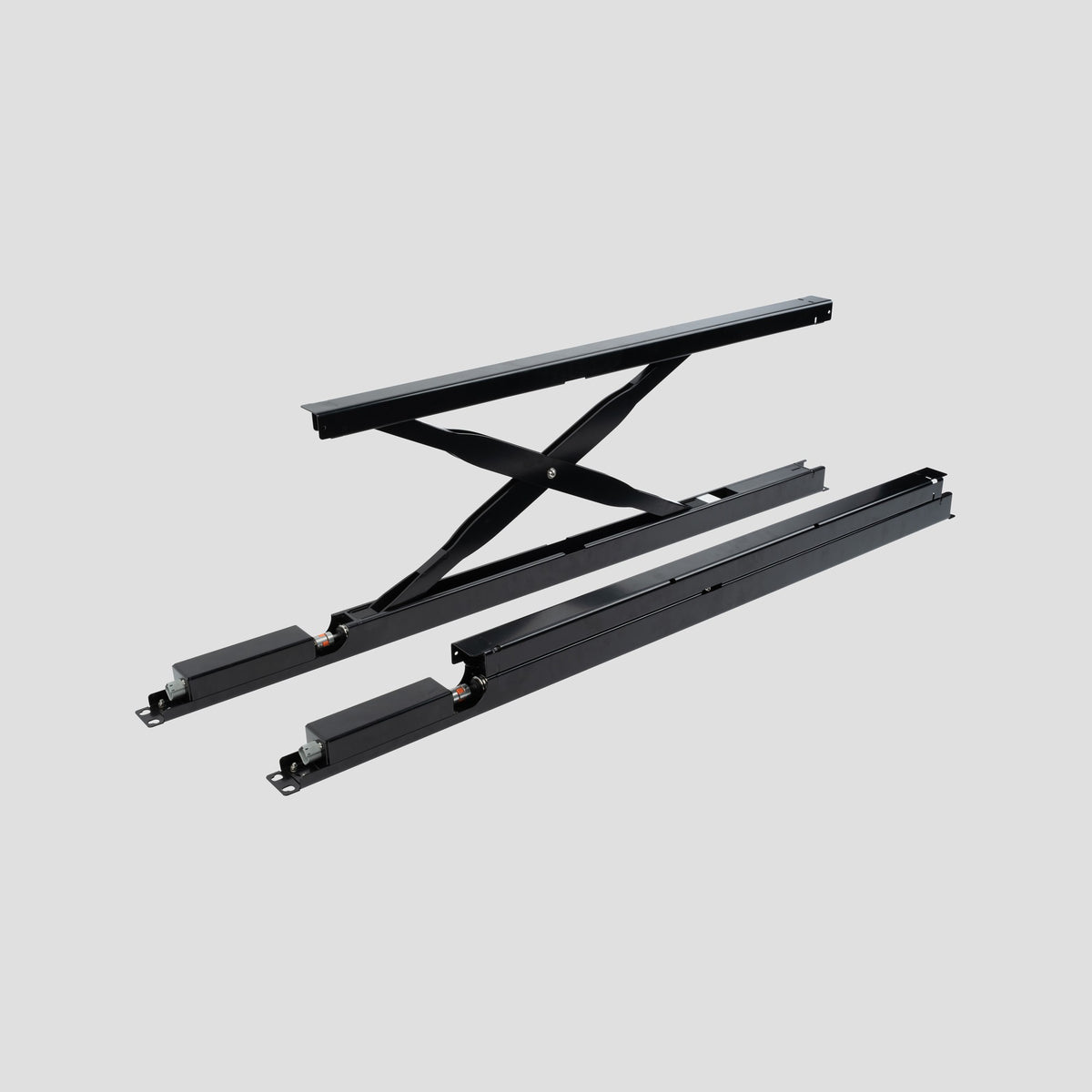

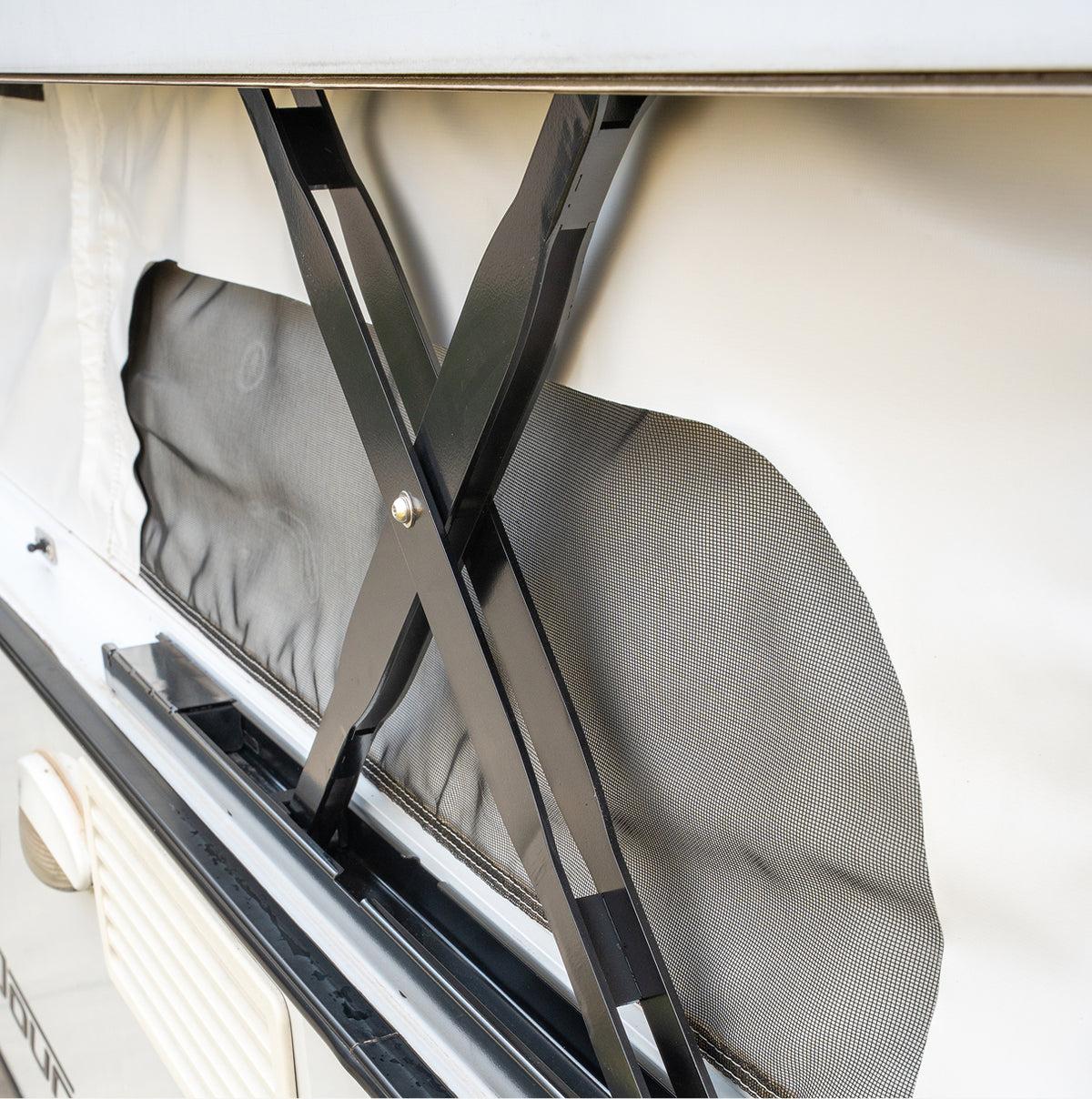

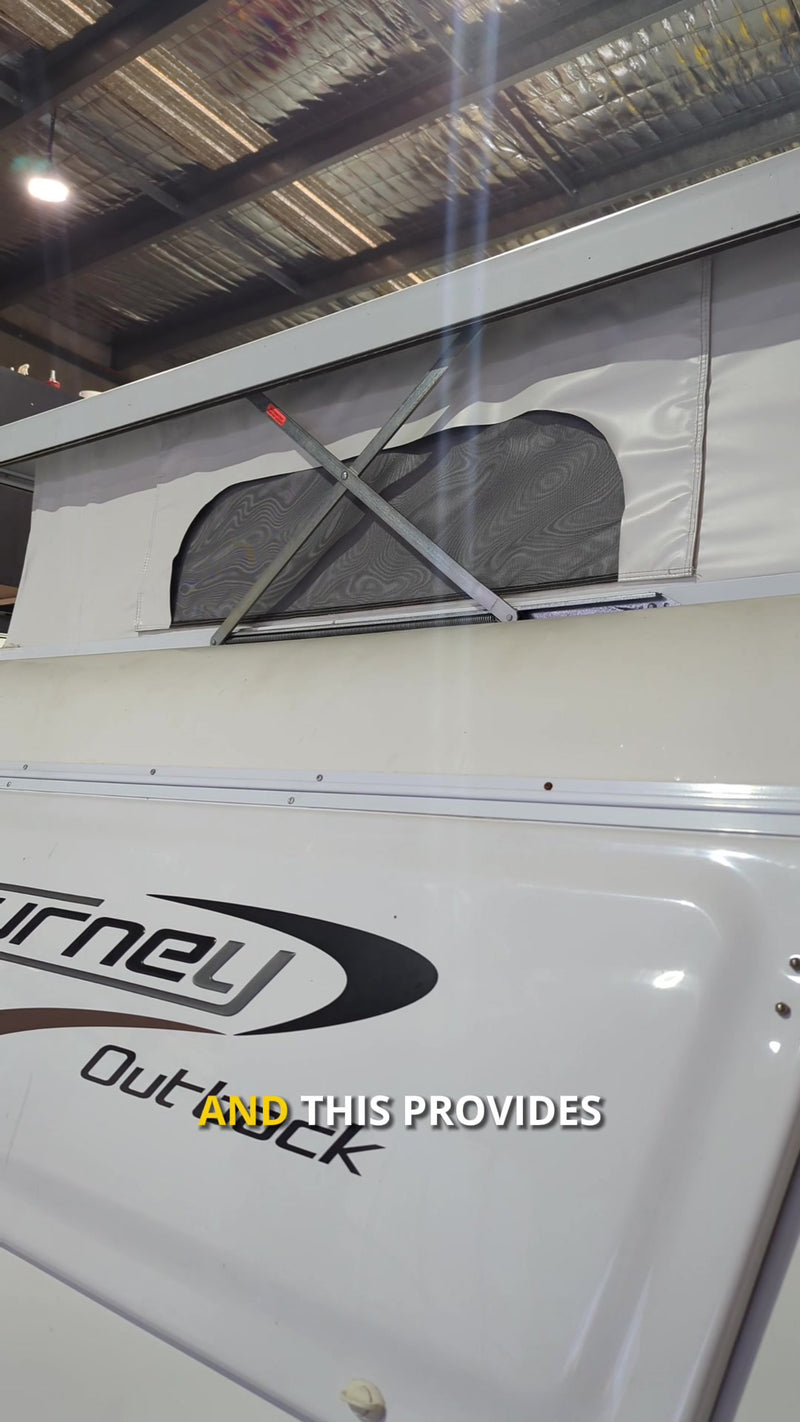

2 x Jacka-PT lifting mechanisms
Motor 1: Electrical harness, Plug-n-play
Motor 2: Electrical harness, Plug-n-play
Battery Harness
Cat-6 data cable: Heads up display connection
Canvas entry point
Mounting hardware
Jacka-PT - Installation Guide

Specifications

Supply voltage: 12V DC
Roof rating: up to 300 kg
Collapsed size: 51 x 85 x 1300 mm
Finish: stainless steel, satin black powder coat
Weight, warranty and pricing to be confirmed at launch

Vehicle compatibility

Fits all Jayco pop-top caravans and most existing and new roof moulds. Fitment for other makes (Goldstream, Coromal, Windsor, Starline and others) is being confirmed through our customer integration program. Tell us your van and we will let you know.

Jacka-PT Lift System

Name: Jacka-PT Lift System
Brand: Jacka Industries
Price: 3500.00 AUD
Availability: OutOfStock

$3,500.00

Sold out

Tax included.

The 12V electric roof lift for pop-top caravans. Push-button lifting for roofs up to 300 kg, with no actuators.

Coming soon

JackaPT is in its final round of installs through our service-agent network before general release. Pricing and full kit details will be published at launch.

Fits: all Jayco pop-tops and most existing and new roof moulds. Check compatibility →

Enquire Find an installer to fit this

Product details

The 12V electric roof lift for pop-top caravans.

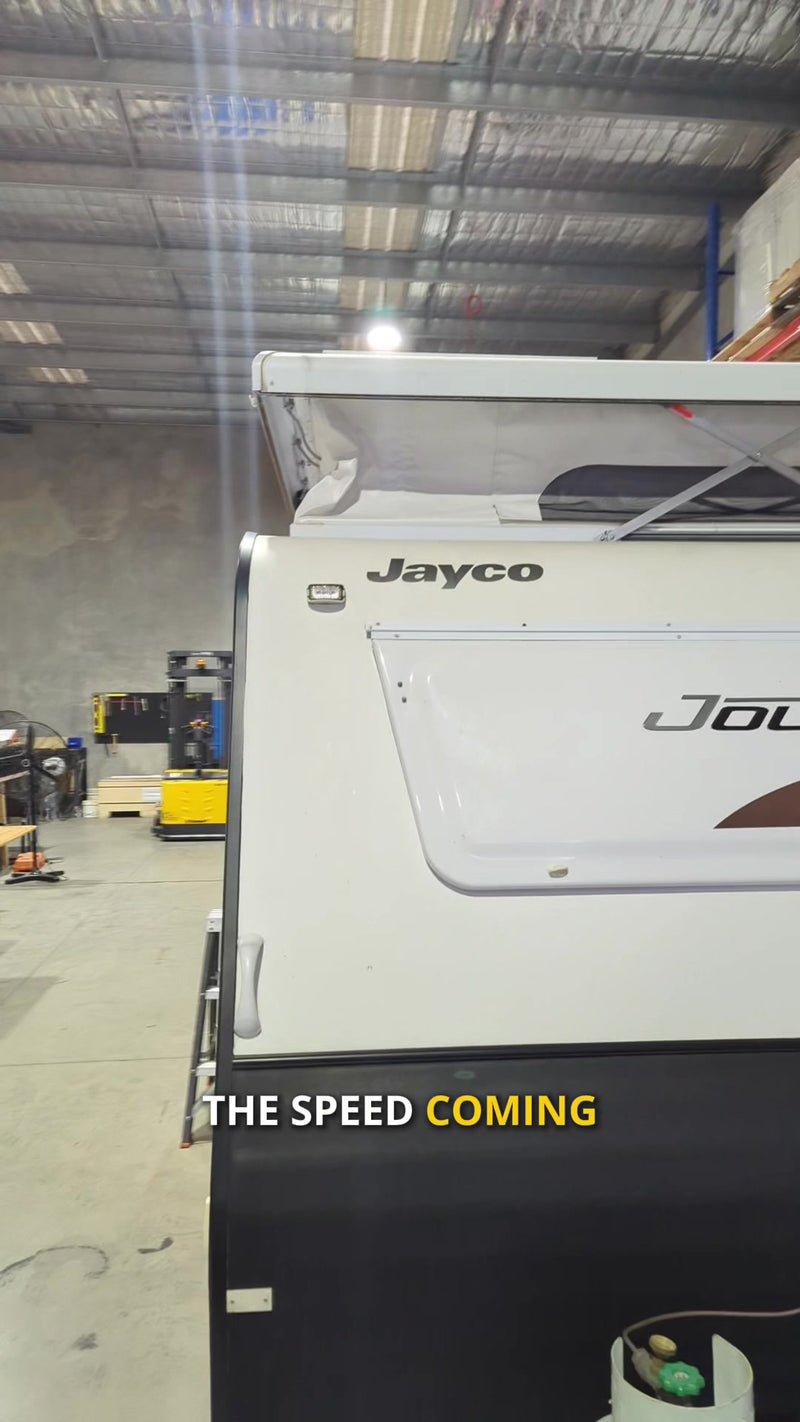

Jacka-PT lifts your pop-top roof at the push of a button, with no manual heaving of "easy-lift" leavers, no actuators and no airbags. It is the first electric lift system built specifically in Australia for Australia, by an innovative Australian company. Fully after-market fitable, Lifts and lowers your roof, with full automation and interactive feedback.

Rated for roofs up to 300 kg
After Market fitable.
Brushless linear motor drive, designed and patented (pending) in Australia
Fully stainless steel with a satin black powder coat; compact 51 x 85 x 1300 mm collapsed dimensions.
Stop the roof at any height, with full-stroke calibration and over-current trip protection.

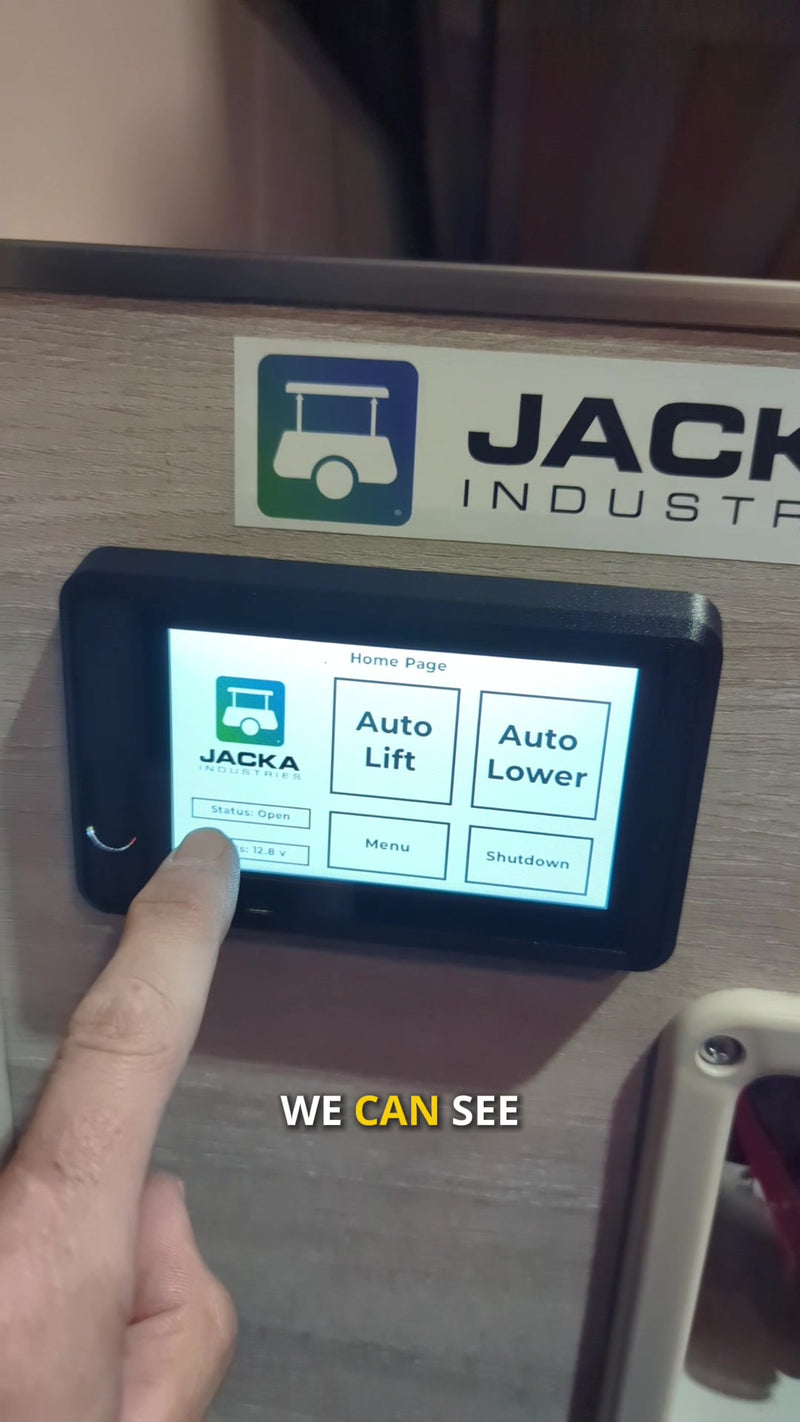

4.3" colour touch screen on a separate heads-up display you can mount anywhere in the van
Plug-and-play modular harness; the roof can still be raised by hand if the system trips

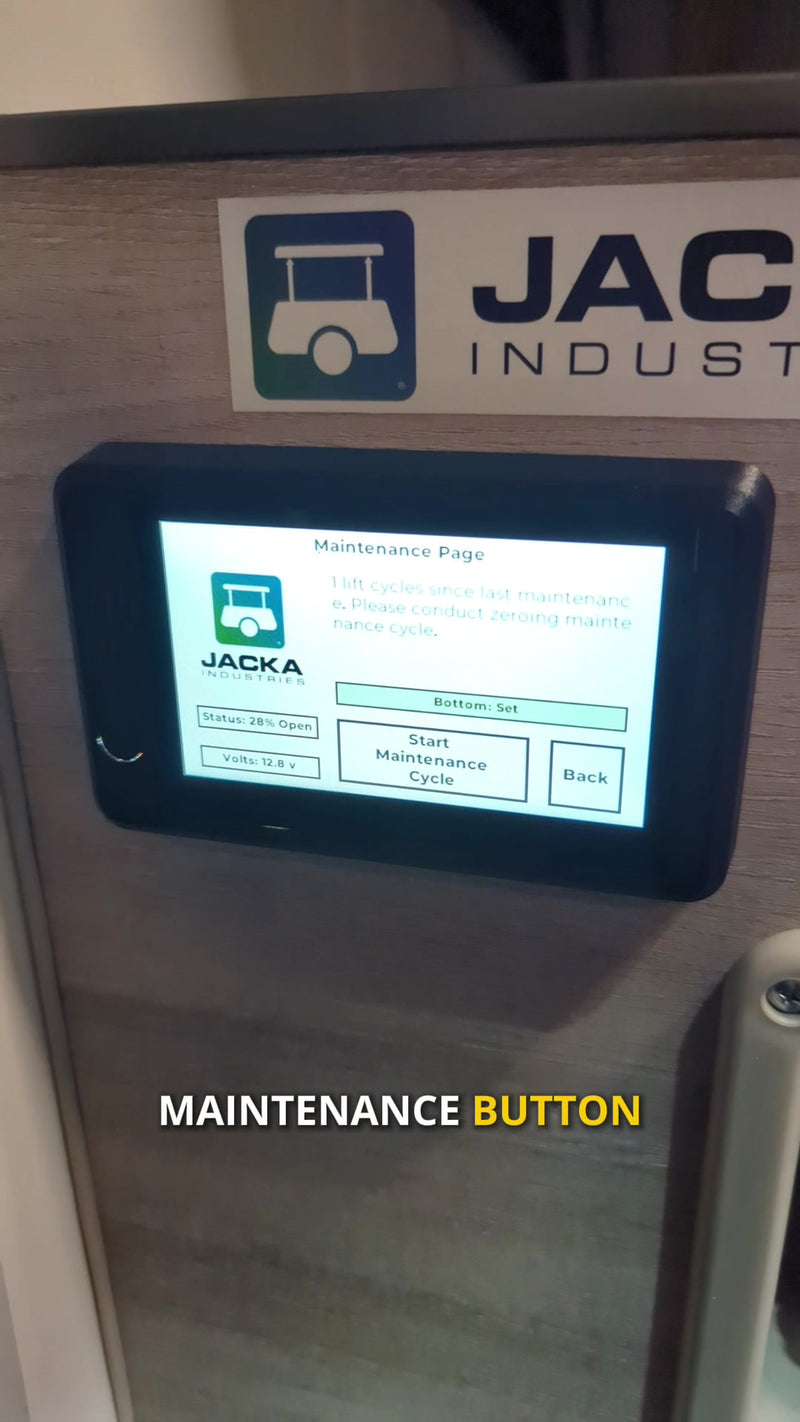

Fully serviceable.
Manual override / functionality.
DIY friendly installation.

Fits all Jayco pop-tops and most existing and new roof moulds. Fitment for other makes is being confirmed through our customer integration program, so tell us your van and we'll let you know.

Jacka-PT is currently available via the Jacka Industries Service Agent Network or at Jacka directly onsite in Sydney. Register your interest and we'll be in touch to arrange the upgarde you've been waiting for.

5-yr warranty

Australian made

DIY-friendly
